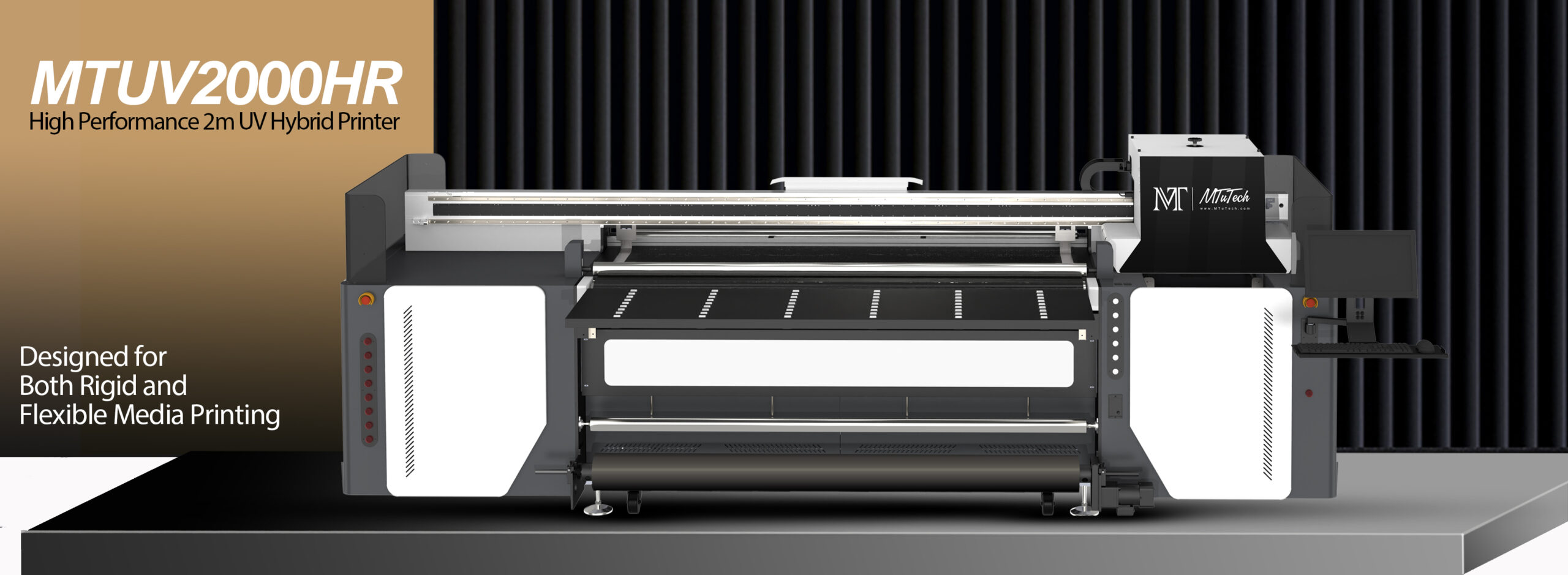

The MTuTech MT-UV2000HR is a high-performance, heavy-duty hybrid UV printer engineered for both rigid and flexible media, as well as a broad range of custom promotional items. This advanced system integrates cutting-edge technologies to deliver vibrant, precise, and reliable print results for demanding, high-volume environments.

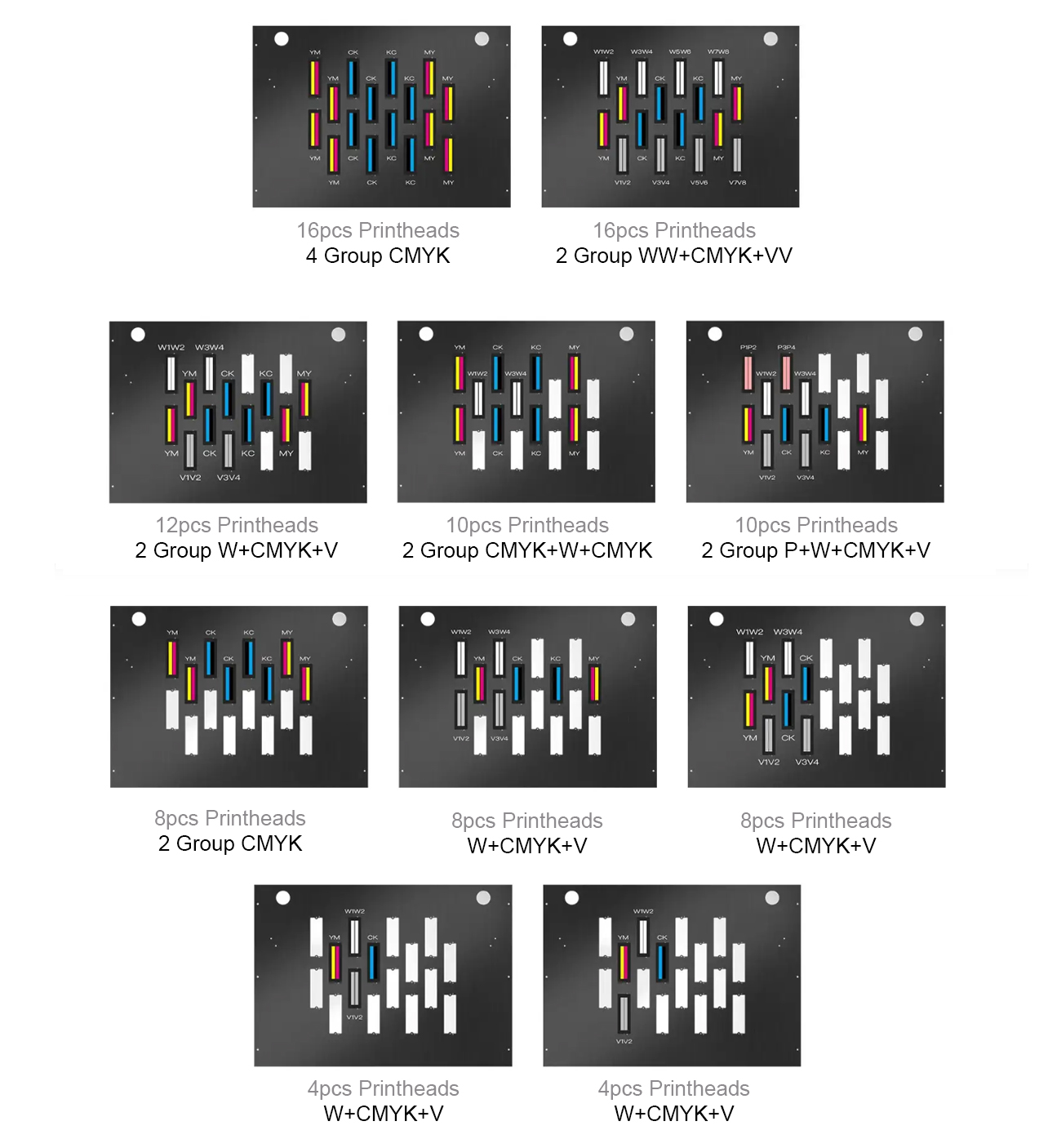

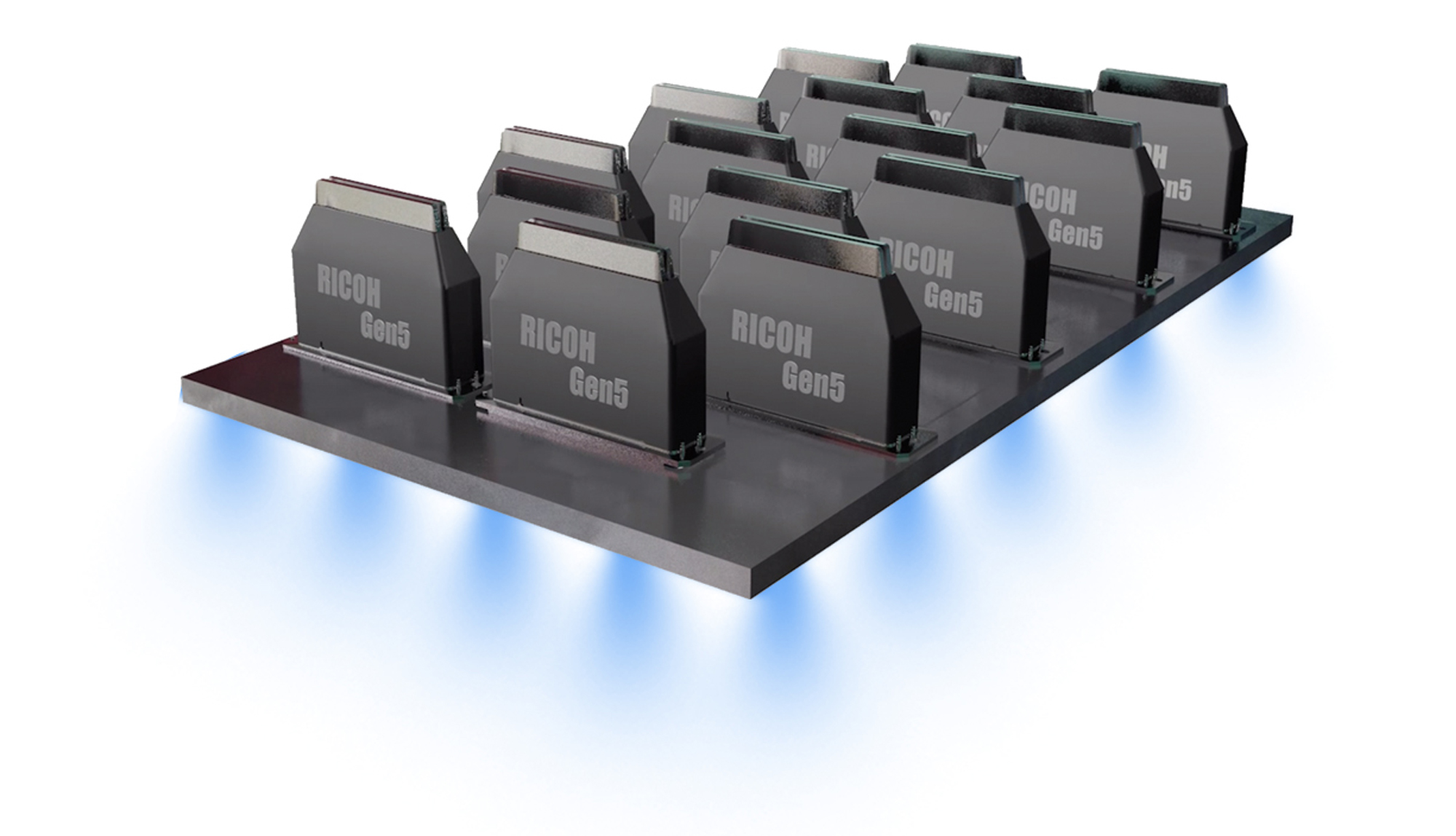

Printhead Technology: Equipped with 3–16 Ricoh Gen5 or Gen6 industrial printheads, achieving true greyscale imaging via variable dot technology (3.5PL, 5.5PL, and 11PL droplet sizes) for smooth gradients and sharp details.
Print Resolution: Native resolution up to 1200DPI, producing crisp images, textures, and even small 4-point text with outstanding clarity.
Print Speed & Productivity: Delivers scalable print speeds from 10㎡/h up to a remarkable 170㎡/h, built for 24/7 industrial production and large-format coverage (max print width: 2,000mm; max print height: 80mm).
Media Compatibility:
Prints on rigid substrates (wood, glass, acrylic, metal, ceramic, MDF, foam board, Correx, leather, etc.)
Handles flexible materials (PVC, vinyl, advertising cloth, mesh, banners, wallpaper, synthetic paper)
Supports promotional items (phone cases, bottle caps, keychains, leather goods, and more).

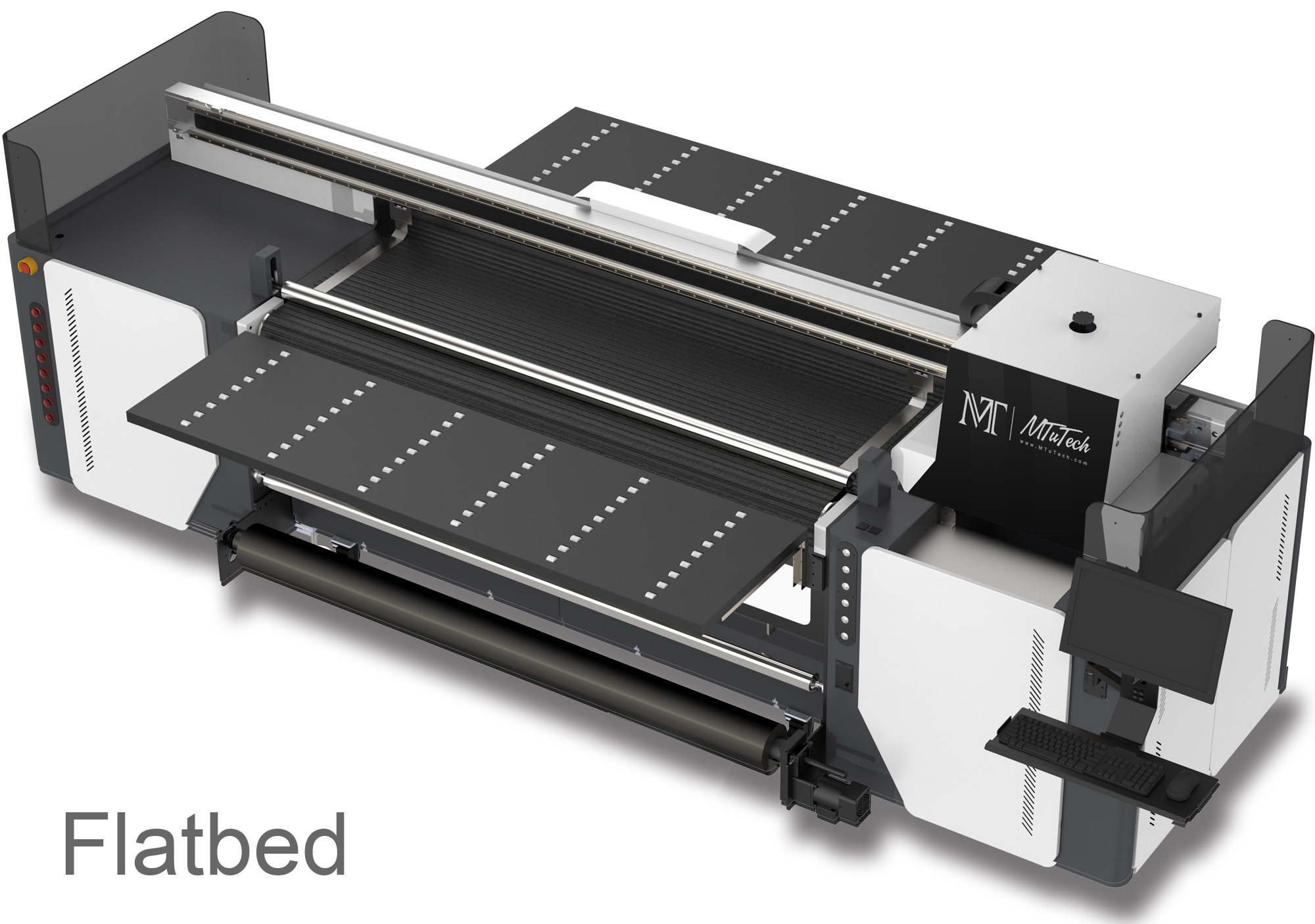

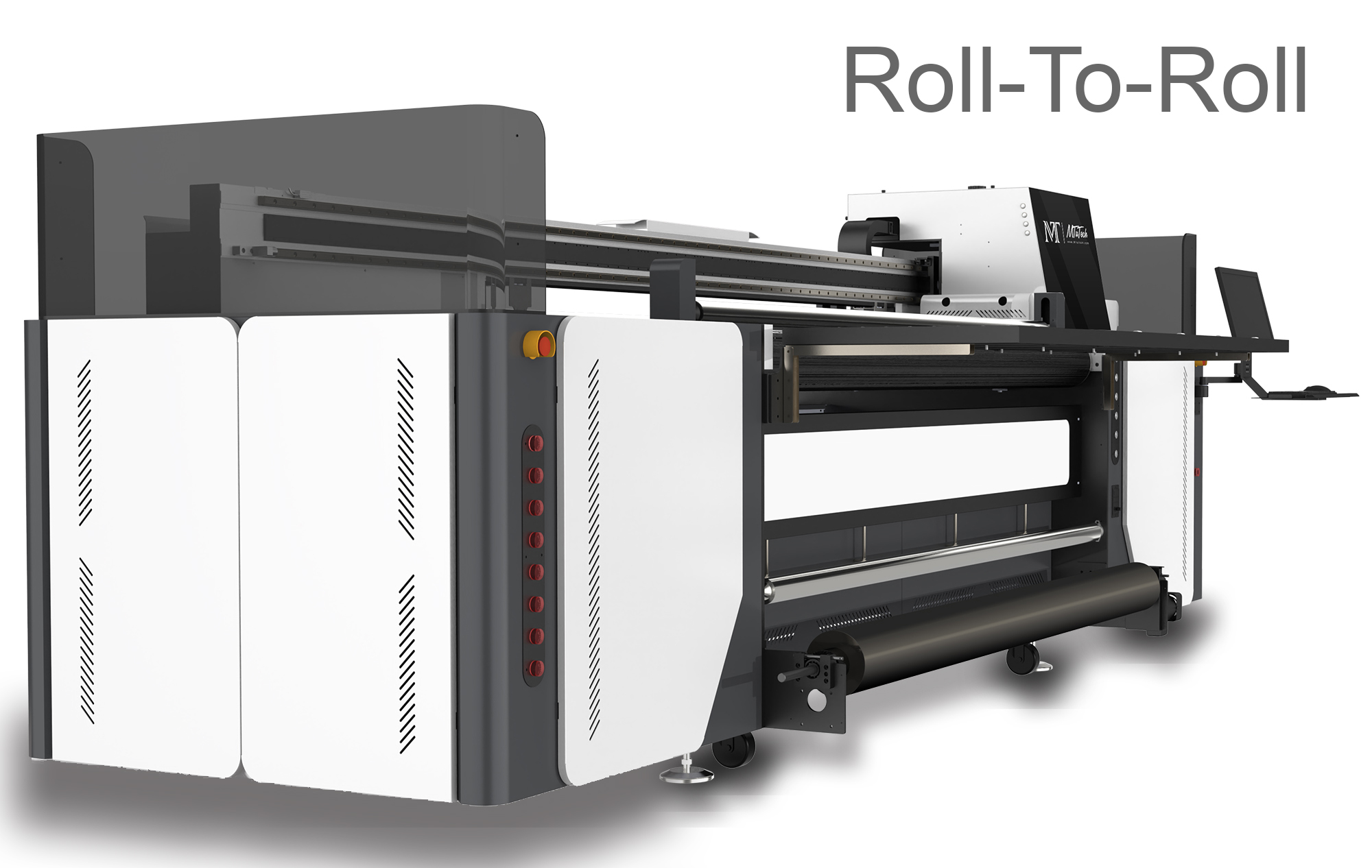

Hybrid Design: Seamlessly switches between flatbed and roll-to-roll modes without hardware changes, maximizing workflow flexibility.

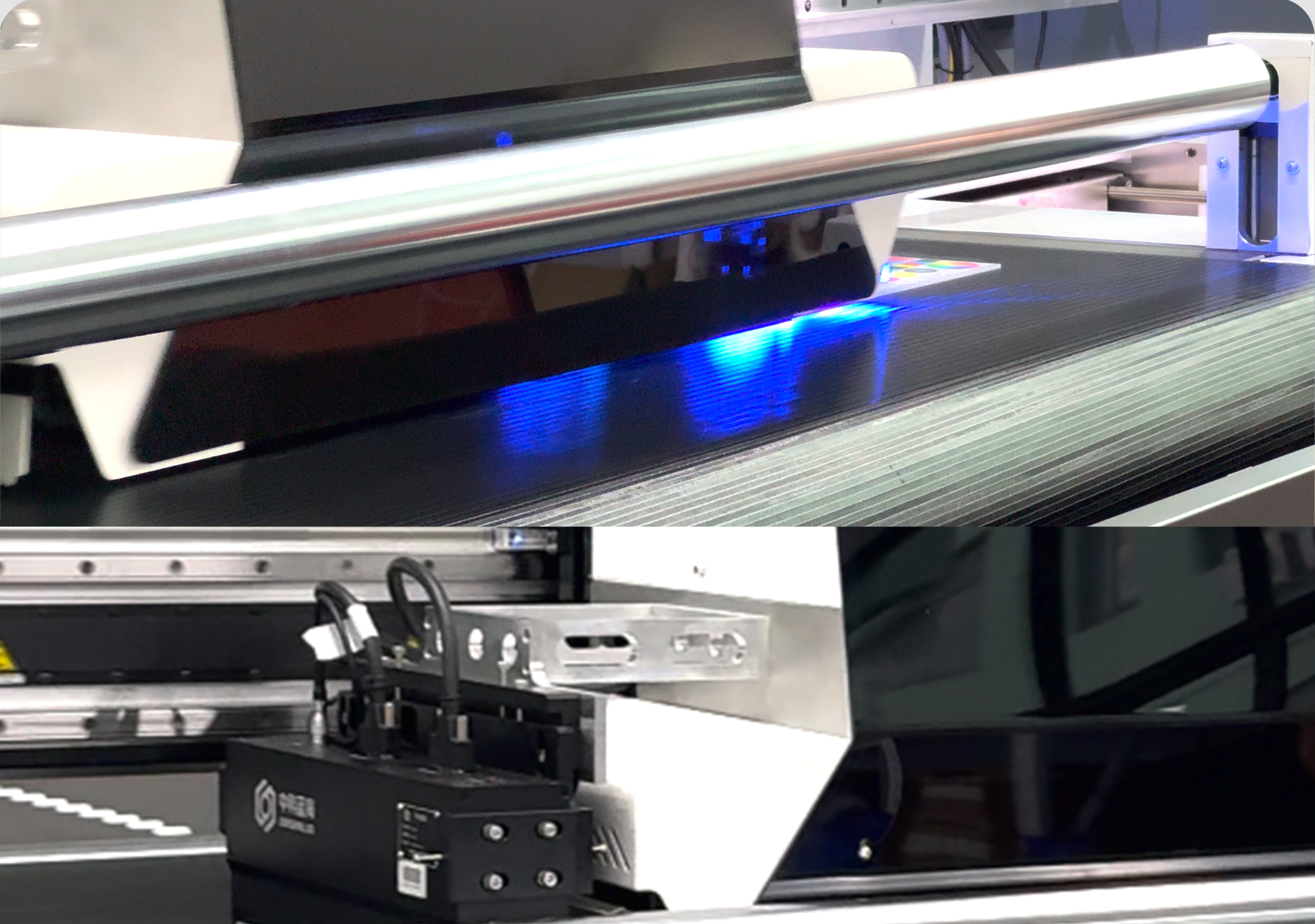

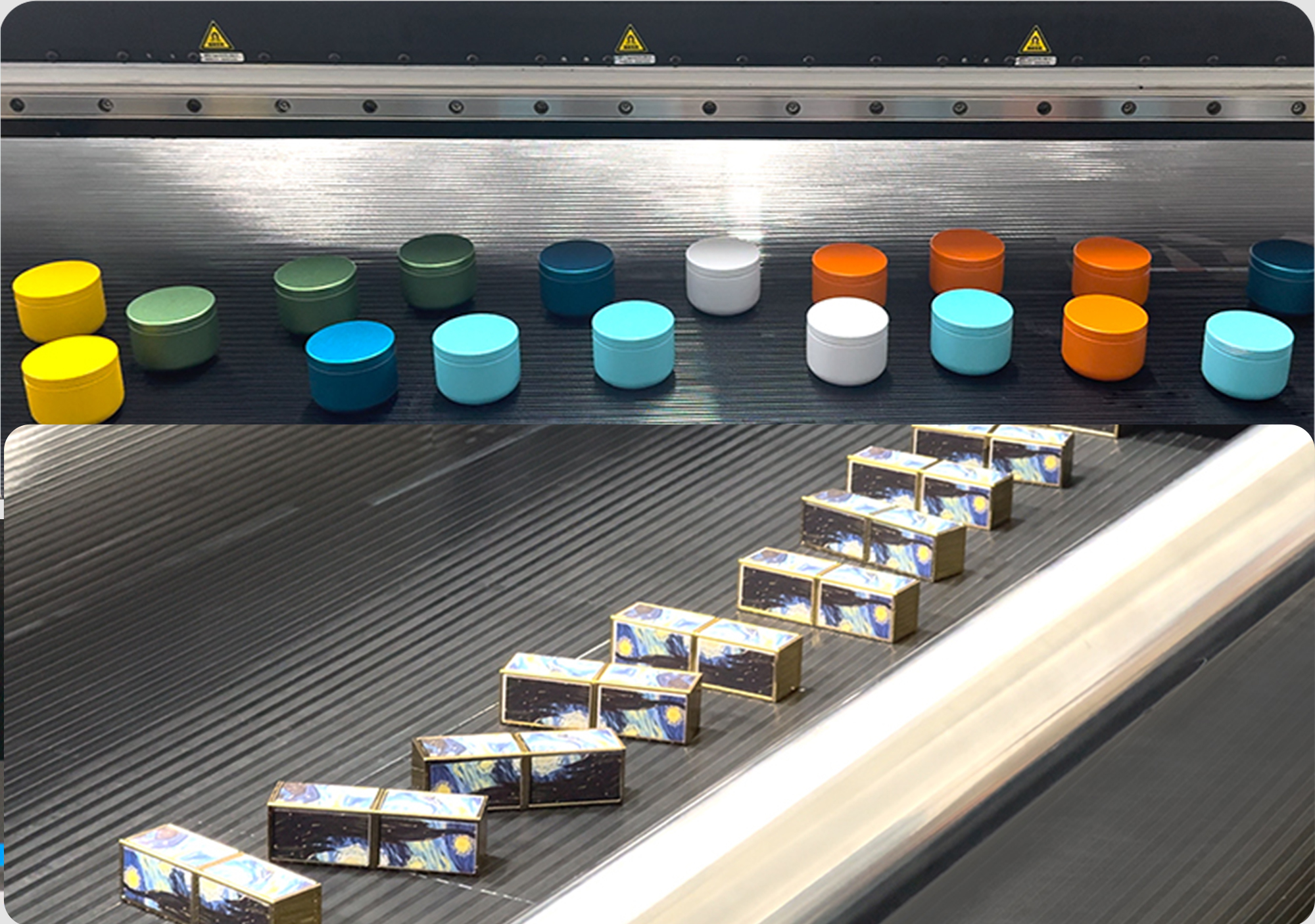

Visual Positioning Technology: Advanced camera-guided system detects, aligns, and prints on small or irregularly placed items, eliminating the need for jigs and improving registration accuracy for multi-item or variable data jobs.
UV LED Curing: Instant dual-side UV LED curing technology for fast drying, reduced power consumption, and safer operation with heat-sensitive media.
Automation & Safety:
Automated feeding, belt conveying, and media take-up with tension control for stable, traceless printing on thin or stretchable substrates.
Emergency stop switches on both sides for operator safety.
Smart Software: Custom RIP software (compatible with Maintop, Photoprint, Onyx, FlexiPRINT) gives users precise control over ink, resolution, layering, and special white/varnish effects. Custom profiles and quick job recall enhance repeat-job productivity.

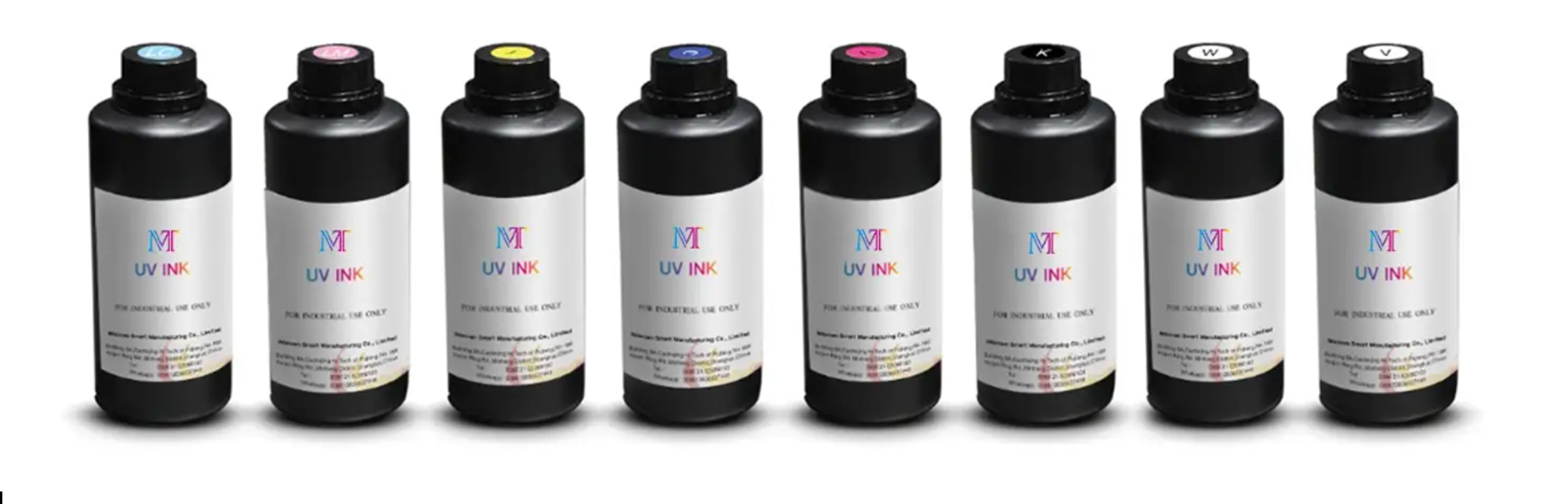

Ink System: Operates with MT’s eco-friendly UV LED-curable inks, available in both rigid and flexible formulations (CMYK + White + Varnish), incorporating “Thin Ink Layer” technology for vibrant colours and low ink consumption.
Reliability: Heavy-duty construction, servo-driven motors, intelligent suction and anti-collision protection, and white ink stir technology—all built for minimal downtime and consistent results.
Hybrid Designed: Seamlessly switches between flatbed and roll-to-roll modes without hardware changes, maximizing workflow flexibility.
UV LED Curing: Instant dual-side UV LED curing technology for fast drying, reduced power consumption, and safer operation with heat-sensitive media.
Signage, billboards, posters, banners, exhibition graphics
Packaging, self-adhesive labels, and promotional merchandise
Interior decoration panels, fine art reproductions, and specialty items
Furniture, glass panels, tiles, home/garden decor
Small object customisation (phone cases, gadgets, gifts, etc.)
